FMS 1:10 FCX10 Chevrolet K5 Blazer RS
FMS x Chevrolet K5
The Chevrolet K5 Blazer made its debut in 1969, emerging in the midst of intense competition. Whether conquering challenging mountainous terrain or showcasing individuality on urban streets, the Chevrolet K5 Blazer embodies people's aspirations for freedom, adventure, and self-expression. It is a symbol of a lifestyle. The classic upright front face and square body lines, make it an integral part of American automotive culture.
FMS FCX10 - The Right Size For Adventure
Licensed by General Motors, this 1/10 scale model of the Chevrolet K5 BLAZER, produced by FMS Models, features the FCX10 simulation crawler chassis, faithfully replicating the original vehicle's off-road performance. The FCX10 K5 is FMS's first high-performance 1/10 scale simulation crawler. It incorporates an abundant range of features, including DIG, switchable 2WD/4WD, lockable front and rear differentials, two-speed transmission, portal axles, and more.
- DIG Transmission System
- Magnetic Lighting System
- Selectable 2WD/4WD
- Locking Differentials
-
Two-Speed Transmission
-
Portal Axles
Extreme Performance Without Sacrificing Realism
With Chevrolet's official license, FMS, adhering to its dedication and pursuit of product appearance and scale realism, committed to creating a highly realistic 1/10 performance crawler.
Front End
Front end is adorned with authentic accessories, including the Chevrolet emblem, K5 Blazer nameplate, chrome-plated front grille, front bumper, and posable windshield wiper.Body
The body features chrome details such as door handles, rearview mirrors, body trim lines, and authentic Blazer badge.Roof
A detachable rear cargo cover and roll bar are provided as a bonus, providing the option to switch between SUV and pickup configurations.Rear End

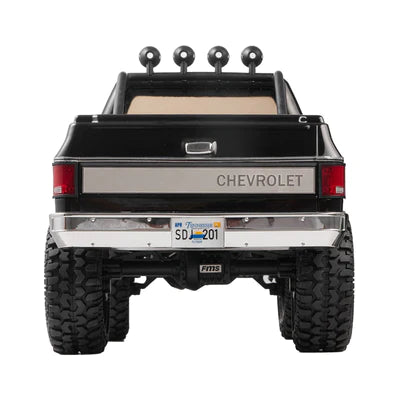

The rear end boasts rich details, including a finely crafted metal-engraved Chevrolet logo, chrome rear bumper, and scale license plate.Softer Tires
Adding 30% butyl rubber to the tires enhances flexibility for improved traction.DIG/FWD/RWD/4WD Switching
The FCX K5 features a 2WD/4WD switch function, allowing for power output transitions among DIG/4WD/FWD' or 'RWD/4WD/FWD' (refer to the user manual for power mode adjustments). Multiple power output modes to adapt to various usage scenarios.
DIG Transmission System
The FCX10 K5 is equipped with a rear axle DIG, allowing for the locking of the rear axle and simultaneous front-wheel drive. This feature provides the vehicle with a smaller turning radius, enabling a 'tank turn' maneuver.FWD
The front wheels serve as the driving wheels, allowing for more agile and flexible maneuvers during turns.RWD
The rear wheels function as the driving wheels, enabling high-speed maneuvers.4WD
All four wheels provide full power output to achieve extreme crawling capabilities.Magnetic Lighting System
The vehicle comes pre-installed with headlights, front turn signals, side turn signals, rear turn signals, reverse lights, and other lighting components. The PC body uses magnetic connections to the chassis, allowing the lights of the entire vehicle to be activated with a single button on the transmitter.
Front Headlights
Front Turn Signals & Side Indicator
Rear Turn Signals
Top Spotlights
(Upgradable light buckets, LED is not included.)FCX10 Chassis

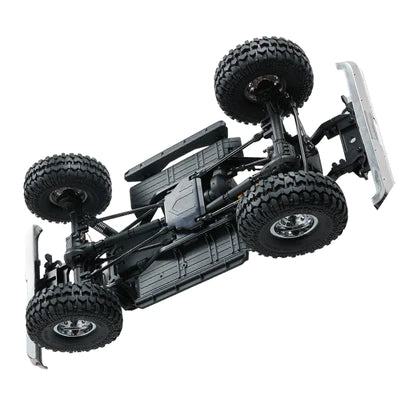

After two years of development the compact, powerful, easy to maintain, FCX10 chassis delivers outstanding performance and reliability.
Mid-Engine Layout Structure
The overall chassis adopts a mid-engine layout structure, effectively optimizing the center of gravity along the central axis, which is more conducive to the consistent operation of the vehicle.Counter Rotating Transmission Outputs
The drive shafts connecting the front and rear axles rotate in opposite directions to counteract some of the vehicle's torque effects.Clipless Body Mounting
The vehicle features a hidden clipless body mounting method, preserving the realistic details of the PC Body.Servo On Axle (SOA)
The steering servo is mounted on the front axle, reducing deviations in steering angle caused by extreme articulation. This enhances precision in steering and providesa better overall operational experience.Portal Axle
The vehicle is equipped with portal axles, providing a higher ground clearance for improved off-road capability.
High-Strength Integrated Axles
Metal Gear Portals
Optional Parts Included
Order FCX10 K5 now and get optional parts worth $60, including molded topper, inner fender set, and pre-installed lighting system! Limited quantity available, while supplies last!
Inner Fender Set
Molded Topper
Lighting System
The inner fender set keeps FCX10 K5 clean and protected, preventing excess dirt and debris.
Molded topper allows FCX10 K5 to easily switch between Pickup and SUV styles
The vehicle comes pre-installed headlights, front, side, rear turn signals, and reverse lights. Top spotlights are upgradable light buckets with LEDs not included.
FCX10 Chassis Component
The high-performance FCX10 chassis features metal materials for key structural components such as the chassis frame, oil-filled shock absorbers, metal links, gears, servos, and full vehicle ball bearings. This ensures ample preparation to tackle more demanding challenges.
Metal C-Channel Chassis Rails
Oil-Filled Shock Absorbers
Metal Links
Metal Gears
Metal Ball Bearings
35 pieces throughout the vehicle
Waterproof Metal Gear Steering Servo
Torque up to 25kg
Metal Servo Horns
Metal Chassis Skid Plate
550 Brushed Motor
Innovative Design
The FCX10 features innovative design, equipped with 2.4GHz 11CH radio control system, chrome-plated body details, low CG design, clipless body mounting, and more. FCX10 - Perfectly Sized for Adventure.
FCX10 Scale Crawler Chassis
General Motors Chevrolet Licensed K5 Body
Durable PC Body
Portal Axle
2.4GHz 11CH Radio Control System
Chrome-Plated Body Details
Low CG Design
Clipless Body Mounting
Large Battery Compartment
Explore the Unknown, Enjoy Your Freedom
PHOTO GALLERY
FMS FCX10 K5
Vehicle :
1/10 Scale Car
Car Size (mm):
548 x249 x 285
Wheel Base (mm):
324
Tire Size (mm):
D46 x W120
Ground Clearance:
89mm
Approach Angle:
58°
Departure Angle:
48°
Motor:
550 Brushed Motor
Recommended Battery :
2S Lipo 7.4V 2000mAh XT60 plug x1
Battery Compartment :
140 x 47 x 30mm
Radio Control:
2.4GHz 11CH Radio Control System
Radio Control Distance:
150m
