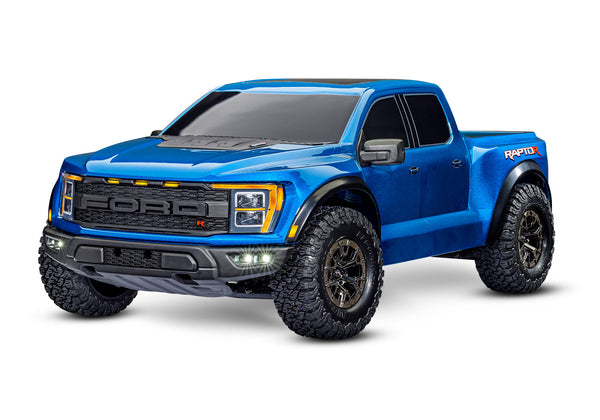

Ford Raptor R 4X4 VXL
MODEL SPECS
| Model Name: | Ford Raptor R 4X4 VXL: 1/10 Scale 4X4 Brushless Replica Truck |
|---|---|
| Model Type: | Short Course Trucks |
| Model Speed: | 60+ mph with optional gearing and 3s LiPo battery (items sold separately) |
| Model Skill Level: | 2 |
| Scale: | 1/10 |
| Weight: | 6.05 pounds (2.74 kg) |
| Length: | 24.98 inches (637 mm) |
| Width: | 11.63 inches (289 mm) |
| Front Track: | 11.63 inches (289 mm) |
| Rear Track: | 11.63 inches (289 mm) |
| Height: | 8.91 inches (226 mm) |
MOTOR SPECS
| Motor Name: | Velineon® 3500 |
|---|---|
| Motor Type: | Sensorless brushless |
| Motor Weight: | 9.24 ounces (262 g) |
| Motor Length: | 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length |
| Motor Diameter: | 1.41 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | 3.5 mm bullet |
ESC SPECS
| ESC Name: | VXL-3s™ electronic speed control |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm) |
| ESC Weight: | 3.17 ounces (90 g) |
| Motor Connectors: | 3.5 mm bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| ESC Power Wire: | 12 gauge Maxx® Cable |
-
Officially Licensed Ford ® F-150 ® Raptor R™ Pro Scale ® Clipless Body and Graphics
- Molded scale details: bumpers, grille, tailgate, side mirrors, and hood vent
- LED lighting in front and rear bumpers
- Body reinforcements to prevent pull-through damage
-
Clipless Body Mounting
- Holds tight for intense action
- Quick and easy removal
- Smooth appearance with no body posts or clips
-
Extreme Heavy-Duty Upgrade Kit Installed
- Made from our toughest cold-weather resistant composite
- Strengthened C-hubs, axle carriers, steering blocks, and shock towers
- Extreme heavy-duty driveshafts
- Oversize diameter
- 6 mm axles
- Steel wheel hexes
-
VXL-3s ™ Waterproof Electronic Speed Control
- Cooling fan with large heat sink
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode ™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set ® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
- Up to 60+ mph with 3s LiPo battery
-
Velineon ® 3500 kV Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Optimized for power and efficiency in 1/10th scale vehicles
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 3500 kV
- Brilliant blue-anodized finish
-
Traxxas Stability Management ® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
-
TQi ™ 2.4 GHz High Output Radio System
- TQi ™ 2-channel transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- 5-channel micro receiver (6533) with fail-safe security
- Patented waterproof receiver box with easy-access plug
-
Chassis
- Extended modular composite tub design
- Secure battery hold-down latch
- Side nerf bars for impact resistance
-
Drivetrain
- Full-time shaft-driven 4-wheel drive
- Oil-filled steel gear front and rear differentials
- Large 32-pitch steel spur gear
- Anodized-aluminum center driveshaft
-
Steering
- Chassis-mounted 2075 servo
- Dual bellcrank design with integrated servo saver
-
Suspension
- Heavy-duty suspension arms
- Adjustable 4 mm steel toe and camber links
- Oil-filled Ultra Shocks
- White powder-coated progressive springs
-
Wheels and Tires
- Licensed Ford replica option wheels
- 2″ outer diameter, 3″ inner diameter
- Licensed BFGoodrich ® All-Terrain T/A ® KO2 tires
- Larger114 mm diameter
- Licensed Ford replica option wheels
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
MODEL 101076-4: Ford® F-150® Raptor R™: 1/10 scale 4X4 short course truck, fully-assembled, waterproof electronics, Ready-To-Race®, with TQi™ 2.4 GHz 2-channel radio system, Traxxas Stability Management (TSM)®, VXL-3s™ speed control, and clipless painted Pro Scale® body. Requires: battery and charger.
What’s In The Box:
- Raptor R with Velineon VXL-3s ESC and 3500 kV motor
- Quick Start Guide
- TQi 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
Raptor R requires a single NiMH or LiPo battery. See full list of batteries.
- Charger
Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
