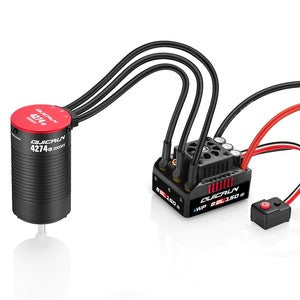

QUICRUN COMBO 8BL150 G2 with 4274SL - 2000KV G2
- 1) Quicrun 8BL150 ESC and Motor Combo

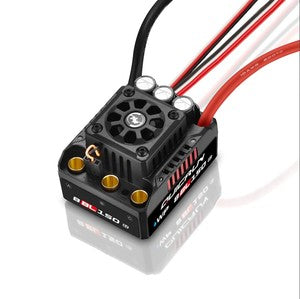

ESC Features
- The innovative intelligent freewheeling technology enables the ESC to have higher driving efficiency and lower operating temerature. The stability and reliability of the ESC is improved.
- The BEC has been upgraded from the previous generation from 6V/3A to 6V/7.4A and is fully-adjustable. It is equipped with a continuous current of 6A, and up to a maxiumum current of 12A. It supports most high voltage servos on the market.
- Equipped with excellent waterproofing and dustproofing performance to cope with various climatic conditions and harsh environments. The protection level of the ESC reaches IP67.
- The internal power board of the ESC is covered with a patented copper heat conduction bus bar to help facilitate the rapid conduction of internal heat to the radiator. Additionally, a fan is added to dissipate heat. These constitute to a highly reliable cooling system to ensure that the ESC is always in a safe opperating temperature.
- Capacitor overheating protection feature can effectively prevent explosions due to overload usage. This helps eliminate damge to the ESC.
- The built-in capacitor capacity of the ESC is as high as 2040 uF and eliminated the need for external capacitors.
Motor Features
- The motor perfectly is perfectly paired with the WP 8BL150 G2 ESC. It is equipped with a standard 6.5mm male connector to support plug and play system.
- The front end of the motor uses a precise large bearing structure to improve load carrying performance. The rear end uses a precise small bearing structure with lower resistance. Having asymmetrical bearings increases reliability and efficience.
- The motor has ultra-high efficiency, resulting in extremely low temperatures buildup. Compared with motors of the same specifications and under the same test conditions, internal temperatures are lowered approximately 20 degrees Celcius and external temperatures are lowered by approximately 12 degrees Celcius.
- The motor uses 10AWG silicone wire. Compared with straight out high-hardness enameled wire, the new wiring is simple and is aesthetically pleasing.
- Hobbywing takes pride in their manufacturing process and the high-quality materials they use to build a motor that offers exceptional durability, maximum performance, and consistency.
- The rotor is precisely balanced to reduce motor vibration and energy loss. It also further ensures good linearity of the overall powerband.
- The front end of the motor adopts a blind hole thread design to prevent the motor from being damaged due to long mounting screws. It also takes into account of M3 or M4 screw installation, which is compatible with various intallation requirements.

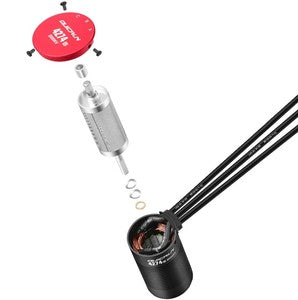

- The motor adopts a modular structure design. It makes daily cleaning and maintenance convenient, effectively prolonging the life-span of the motor and mainting the working efficiency of the motor.
