MAX SPEED & Power.

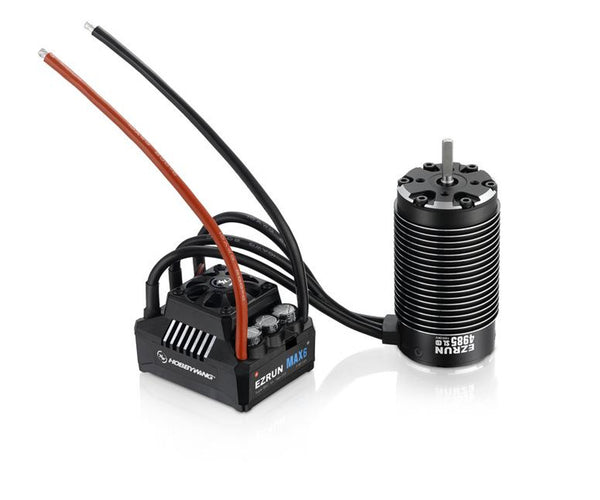

EZRUN Series SensorLESS Brushless 1/5 Scale Combo!
What in the box?
- (1) Ezrun MAX5 ESC
Depending on the Motor Option Selected - (1) EzRun 56113 800KV Motor or EzRun 5687 1100KV Motor
- (3) 10 AWG, 200C Black wires for a brushless motor
- (1) 8 AWG 200C RED power wire
- (1) 10 AWG 200C Black power wire
- (1) Double side tape
- (2) Heat shrink tube
- User's manual
- A HOBBYWING decal
Specifications
Motor
Model 56113SL-800KV 5687SL-1100KVPN3040290030402550Pole44KV(No-load)800KV1100kvR. (Ω)0.000490.0041Current No-load（A）3.24.1Max. Output Power（W）58005800C.at the point of M.O.P *(A)200200Motor D.&L（mm）
Φ=56mm, L=113mmΦ=56mm, L=87mmShaft D.&L of the projecting part（mm）
Φ=8.0mm, L=31.0mm.Φ=8.0mm, L=31.0mm.LiPo(S)3-83-8W (g)1210g(42.68oz)916g(32.21oz)Applicable1/5th RC Vehicles Truck/Dragster1/5th RC Vehicles Truck/Dragster
ESC
ModelMAX5P/N30104000Scale Vehicles1/5thCont./Peak
Current200A/1300AMotor ModeSensorlessInput9-24 Cells NiMH，
3-8S LipoMotor Limit8S:KV≤1000
(Motor Size:58110）BEC Output6V/7.2V
adjustable, 6AProgramming
PortUse Fan portESC ProgrammingVia the SET button/LED Program card /LCD Program Box/ WiFi ModuleSwitch ModeElectronic SwitchCapacitor
protectionYesWaterproofYesSize (L.W.H)
mm93.35/58.12/47.81Weight342g
- Strong Power: With a fast acceleration response and a rock-solid, stable output, the EZRUN 4985/5687/56113 motor can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain.
- Thermal Protection*: When pairing the EZRUN 4985/5687/56133 motor with the Hobbywing upgraded MAX6/MAX5 ESC, the built-in temperature sensor & port will effectively prevent the motor from being damaged due to overheat and prolong its service life . *Note: The built-in temp. sensor will be available through HOBBYWING MAX5/MAX6 ESC in the future model
- High Efficiency: Hobbywing’s temperature control technology has been designed to protect the motor from being damaged by heat thus less heat more efficient the motor will run and perform. The output performance of this motor has an efficiency rate of up to 90% (an industry-leading level).
- MAXIMIZED EFFECT: When pairing the EZRUN 4985/5687/56133 motor with the Hobbywing EZRUN MAX5/MAX6 ESC, the excellent match between ESC and motor will give you large torque plus a very smooth and linear power band. (*Note: MAX5 pairs with 5687/56113, MAX6 pairs with 4985)
- Easy programmable features by WiFi Module (IOS & Android) or LCD Program box - Purchase separately
