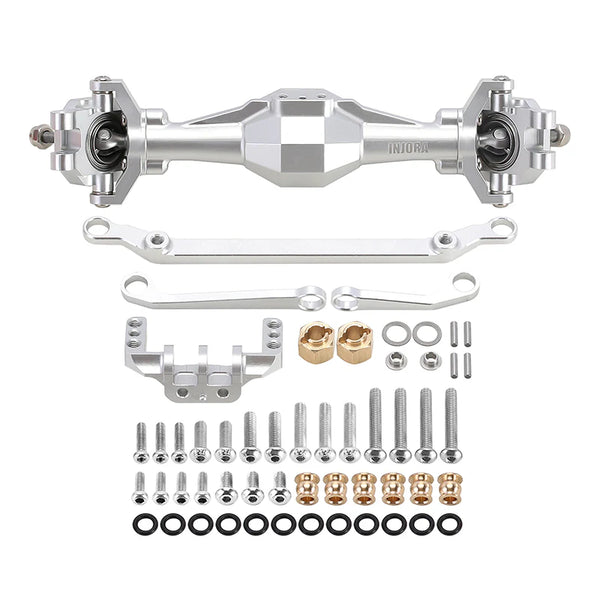

INJORA +4mm Diamond Axles (Front-Silver) With Lay Down Servo Mount & Links For 1/18 TRX4M
INJORA +4mm Diamond Axles with Lay Down Servo Mount & Links for 1/18 TRX4M
Note:
- Not compatible with stock TRX4M chassis as the lay down servo mount is wider than stock.
- Not compatible with original TRX4M size dogbone shafts as the axle housings are 4mm extended per side.
- Compatible with both INJORA and stock TRX4M upgrade parts: gears, C hubs, steering knuckles, chassis links, drive shafts.
- Compatible with these servos: injora 7kg servo INJS2065(please add the bushings), injora 11kg servo INJS11
Features:
- Diamond shaped pumpkin for more realistic scale look.

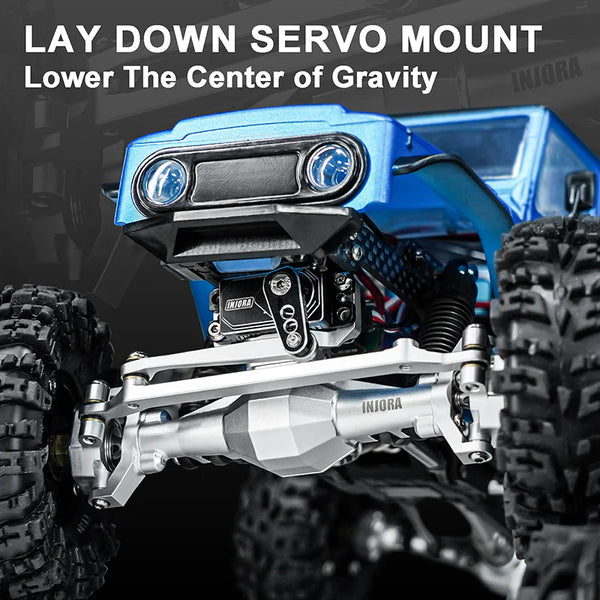

- Equipped with a servo-on-axle lay down servo mount that lowers the center of gravity.
- 2 short drag links optional
- Pre-assembled complete axles. Please grease the axles before installation.
- +4mm axles increase the width of each side by 4mm, increase total length by 8 mm.
- The entire axles have been extended, not just the dogbone shafts, which prevents the dogbone shafts from being overburdened.
- 4mm extended design provides better stability and climbing performance
- Come with Hardened CVD shafts, steel 12/24T gears, 5mm(+1mm) brass wheel hexes and nuts.
Specifications:
- Housing Material: Aluminum
- Gear Material: 20CrMo Alloy Steel
- CVD Shaft Material: Hardened Steel
- Gear Ratio: 24/12=2:1 (Same as Stock)
- Total Length: 122mm (4.80in)
- Front Axle Weight: 62g (2.19oz)
- Rear Axle Weight: 42g (1.48oz)
