INJORA +4mm Extended Aluminum Front & Rear Complete Axles For 1/18 TRX4M (4M-61)

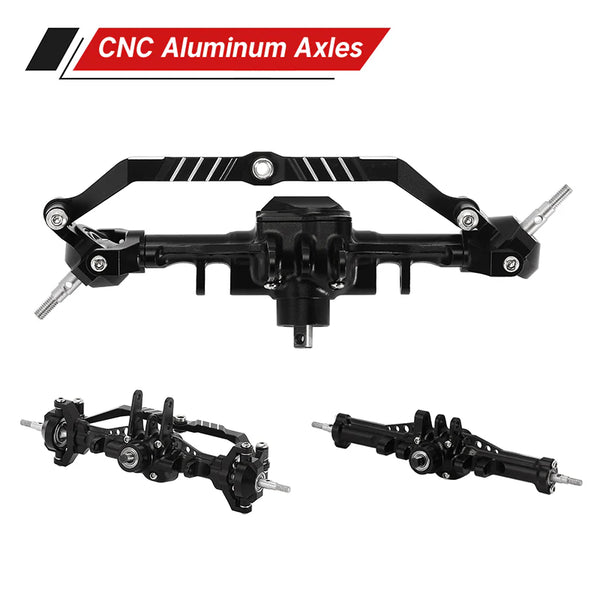

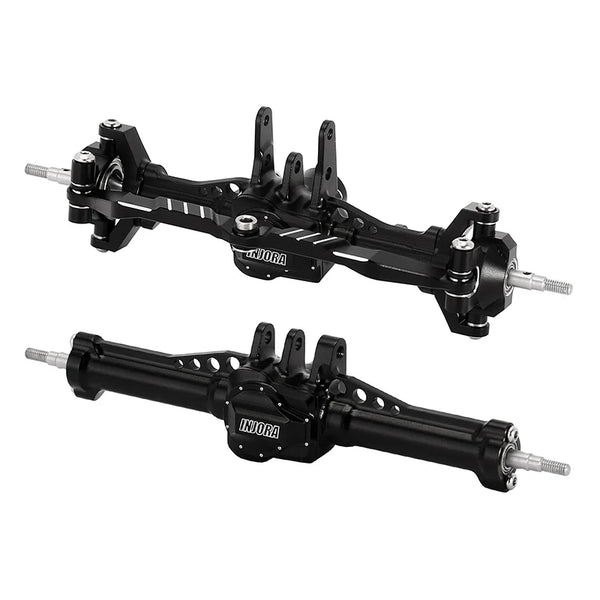

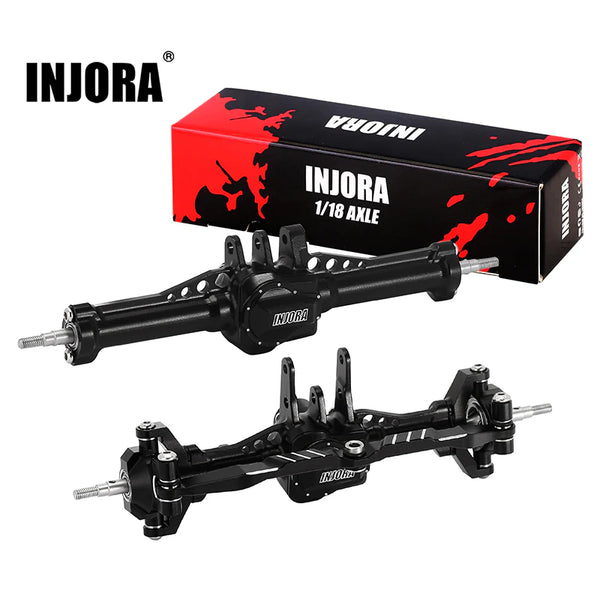

INJORA CNC Aluminum 4mm Extended Front & Rear Complete Axles for 1/18 RC Crawler TRX4M Upgrade (4M-61)
Compatible with: 1/18 RC crawler TRX4M Defender, Bronco, High trail K10, F150
Note:
- Compatible with both INJORA and stock TRX4M chassis, servo mounts, diff covers, gears, C hubs, steering knuckles, chassis links.
- As the axle housings are extended, so they are not compatible with original TRX4M size steering links and dogbone shafts.
Features:
- Pre-assembled complete axles. Please grease the axles before installation.

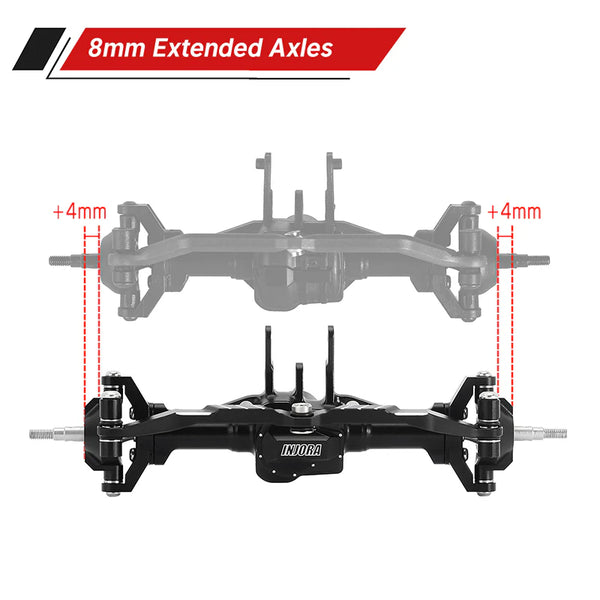

- +4mm axles increase the width of each side by 4mm, increase total length by 8 mm
- The entire axles have been extended, not just the dogbone shafts, which prevents the dogbone shafts from being overburdened.
- 4mm extended design provides better stability and climbing performance

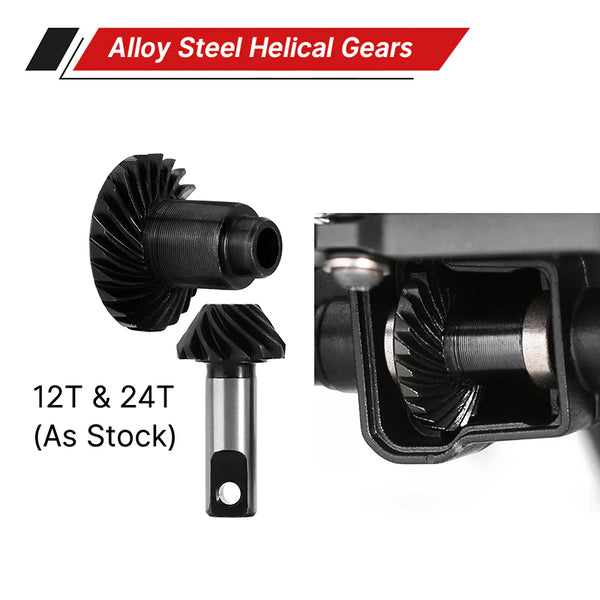

- Hardened CVD shafts and steel 12/24T gears
- Come with 5mm(+1mm) brass wheel hexes and nuts

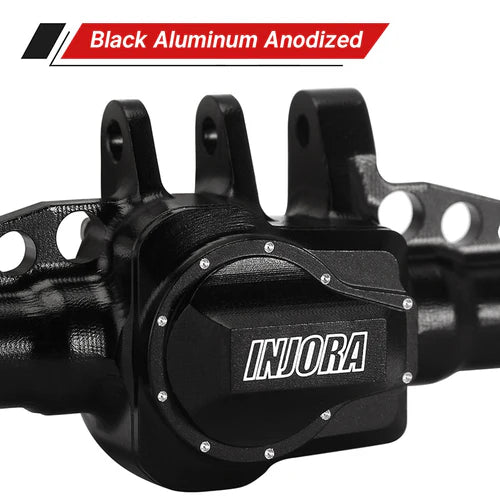

- CNC machined, black anodized
- Excellent workmanship and high precision
Specifications:
- Part Number: 4M-61
- Housing Material: Aluminum
- Gear Material: 20CrMo Alloy Steel
- CVD Shaft Material: Hardened Steel
- Gear Ratio: 24/12=2:1 (Same as Stock)

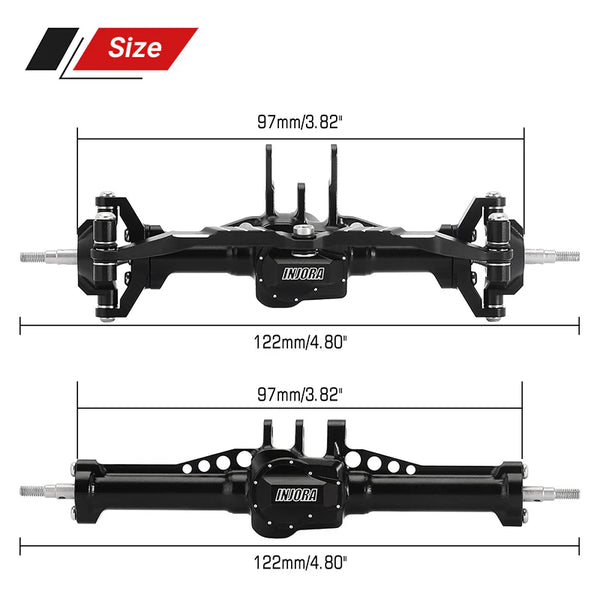

- Total Length: 122mm (4.80in)
- Front Axle Weight: 48g (1.69oz)
- Rear Axle Weight: 42g (1.48oz)
