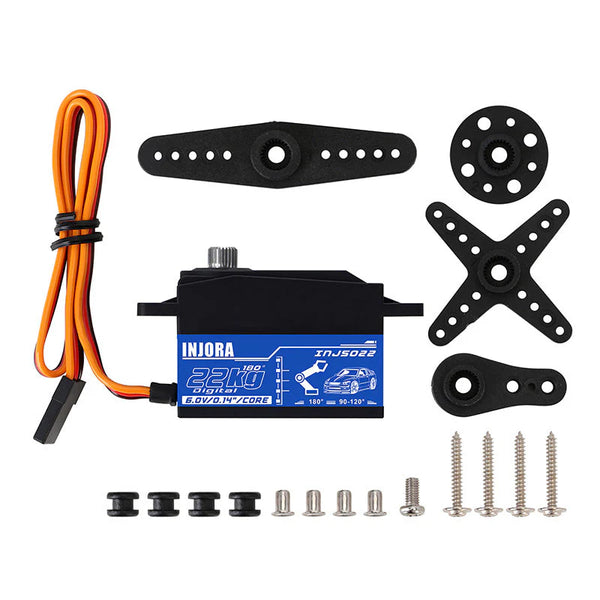

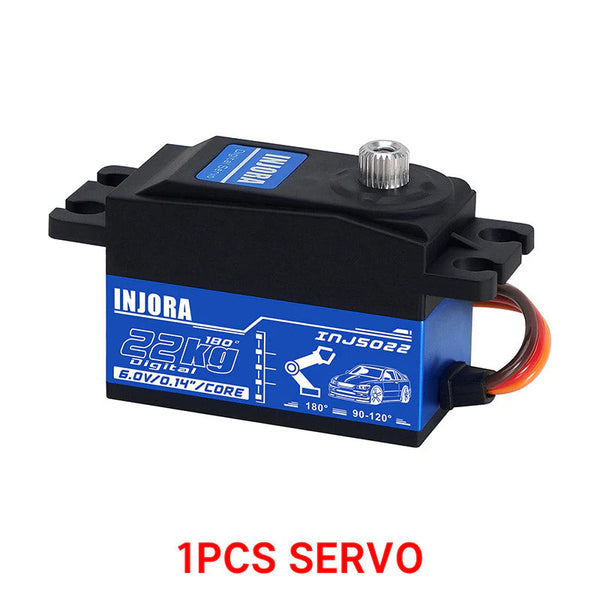

INJORA INJS022 22KG Low Profile Digital Servo for 1/10 RC Car Robot Model
Note: This servo is not waterproof
Features:
- Low Profile case saves space and weight
- Full metal gears and dual ball bearings
- Plastic case with aluminum center band
- 0.17 transit speed, and 17.6kg of torque @ 4.8V
- 0.14 transit speed, and 22kg of torque @ 6.0V

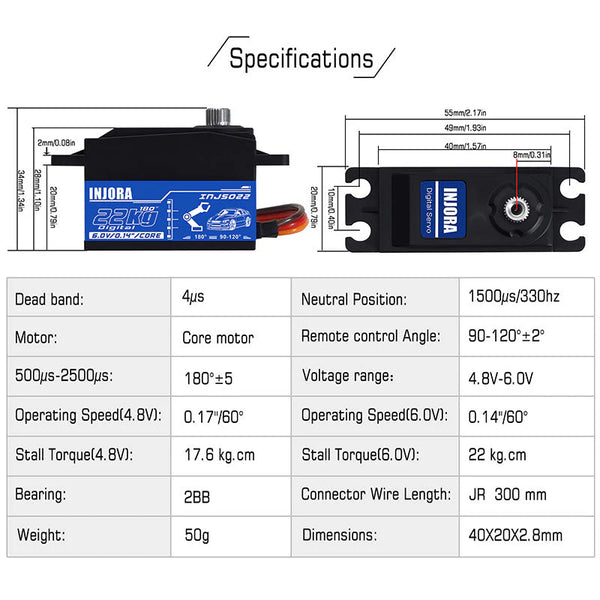

Servo Specifications:
- Item Number: INJS022
- Dead band: 4μs
- Neutral Position: 1500μs/330hz
- Bearing: 2BB
- Motor: Core motor
- Remote control Angle: 90-120°±2°
- 500-2500μs Angle: 180°±2°
- Voltage range：4.8V-6.0V
- Operating Speed(4.8V): 0.17''/60°
- Operating Speed(6.0V): 0.14''/60°
- Stall Torque(4.8V): 17.6 kg.cm
- Stall Torque(6.0V): 22 kg.cm
- Weight: 50g
- Dimensions: 40X20X28.8mm
- Connector Wire Length: JR 300mm
- Servo Arm Specifications:
- Material: Aluminum
- Color: Red
- Weight: 4g
- Teeth: 25T
