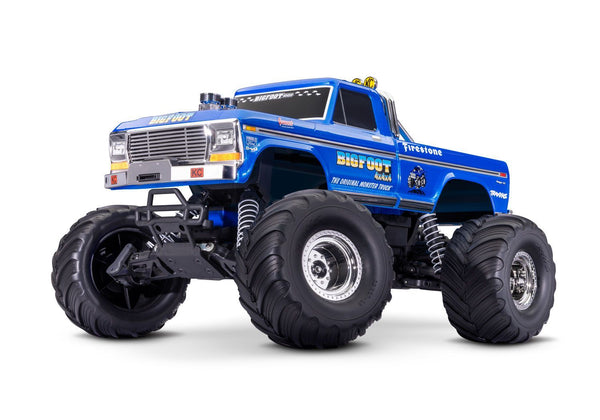

BIGFOOT No. 1 BL-2s HD
-
Licensed BIGFOOT® No. 1 Clipless Body
- Brilliant blue metallic officially licensed F-100 Ford® XLT Ranger body
- Chrome front bumper with replica winch
- Chrome grille with light buckets and reflectors
- Replica high-rise dual-carb intake manifold
- Chrome roll bar with replica KC lights
- Body reinforcements to prevent pull-through damage
- Holds tight for intense action
- Quick and easy removal
- Smooth appearance with no body posts or clips
- Includes wheelie bar
- Brilliant blue metallic officially licensed F-100 Ford® XLT Ranger body
-
BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan
- Three Programmable Drive Profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)
-
BL-2s Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 kV
- Virtually maintenance-free
-
Extreme Heavy Duty Parts Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- HD suspension arms
- Extreme heavy duty driveshafts
- Extra material for improved strength
-
TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- O-ring sealed watertight receiver box keeps the receiver dry
-
Easy Access Battery Compartment
- Adjustable battery hold down
- Accepts 6- and 7-cell flat packs and 7-cell hump packs
- Accepts many 2s LiPo battery configurations
-
Transmission and Driveline
- Velineon®-ready Magnum 272™ metal-gear transmission
- Torque-Control™ slipper clutch system
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access
-
Tough Fiber-Composite Monocoque Chassis
- Tall 4″ center ground clearance to drive over obstacles
-
Steering
- High-torque waterproof Traxxas 2056 steering servo
- Spring-loaded servo saver helps protect against impacts
-
Suspension
- Durable solid camber links eliminate the need for adjustment
- Captured rod ends won't pop off
-
Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- White powder-coated springs
-
Wheels and Tires
- Pre-glued high profile Terra-Groove shaved monster truck tires
- 2.2″ Deep dish mirror-chrome beadlock-style wheels
- Rubber-Sealed Ball Bearings
- Precision Hex Hardware
- Battery and Charger Sold Separately
Model Specs
| Model Name: | BIGFOOT No. 1 BL-2s HD |
|---|---|
| Model Type: | Monster Truck |
| Model Speed: | 30+ mph with 7-cell battery |
| Model Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 4.08 pounds (1.85 kg) |
| Length: | 16.25 inches (413 mm) |
| Width: | 12.75 inches (324 mm) |
| Front Track: | 12.75 inches (324 mm) |
Motor Specs
| Motor Name: | BL-2s 3300 kV |
|---|---|
| Motor Type: | Sensorless brushless |
| Motor Weight: | 7.51 ounces (213 g) |
| Motor Length: | 3.15 inches (80 mm) |
| Motor Diameter: | 1.42 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | Traxxas Quick Connect Motor Plug |
ESC Specs
| ESC Name: | BL-2s Electronic Speed Control |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| ESC Weight: | 3.07 ounces (87 g) |
| Motor Connectors: | Traxxas Quick Connect Motor Plug |
| Battery Connectors: | Traxxas High-Current Connector |
