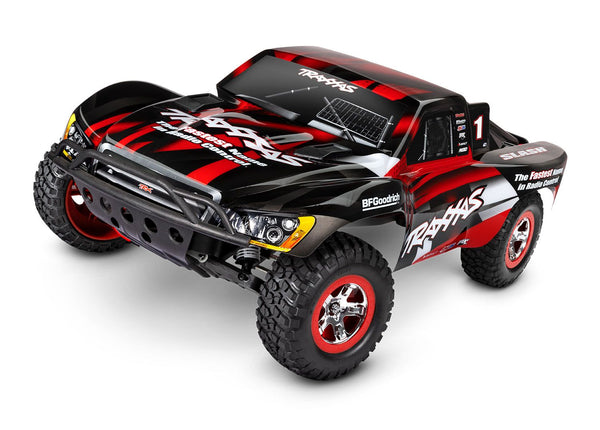

• Race Replica ProGraphix^® Painted Body
  • Pre-painted body with applied decals
  • Scale dimensions and looks of actual short course race trucks
  • Chassis nerf bars absorb impact and support the body
  • Scale front and rear tube-style bumpers
• High-Performance Waterproof XL-5™ Electronic Speed Control
  • Innovative waterproof design
  • Three drive profiles
    • Sport Mode - forward / brake / reverse
    • Race Mode - forward / brake
    • Training Mode™ - 50% forward / brake / 50% reverse (patented)
  • Traxxas EZ-Set^® one-button setup
  • LiPo and NiMH compatible with two-stage low-voltage detection
• Titan^® 550 Motor
  • Powerful Titan 12T 550 modified motor with internal cooling fan
  • Oversized armature for big torque and increased power handling
  • Virtually maintenance-free operation
  • Molded wire retainer keeps motor wires secure
• Includes Battery and USB-C Charger
  • 4-amp USB-C fast charger
  • 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD^®

• TQ™ 2.4 GHz 2-Channel radio system
  • Ergonomic transmitter with internal antenna
  • Traxxas 6519 3-channel micro receiver with fail-safe security
  • Patented O-ring sealed watertight receiver box keeps the micro receiver dry
• Tough Fiber-Composite Monocoque Chassis
  • Long 13.2″ wheelbase for increased stability
  • Over 3.5-inches of ground clearance
  • All electronics securely fastened to chassis
• Easy Access Battery Compartment
  • Adjustable battery hold down
  • Accepts 6- and 7-cell flat packs and 7-cell hump packs
  • Accepts many 2s LiPo battery configurations
• Transmission and Driveline
  • Brushless-ready Magnum 272™ metal-gear transmission
  • Torque-Control™ slipper clutch system
  • Planetary gear differential with steel ring gear
  • Sealed gearbox protects the transmission with beefed up motor guard
  • External gear cover with easy clutch access
  • Heavy-duty telescoping U-joint driveshafts and yokes

• Steering
  • Digital High-torque waterproof Traxxas 2075 steering servo
  • High-performance bellcrank system minimizes bump steer
• Suspension
  • Adjustable steel turnbuckles
  • Captured rod ends won't pop off
• Springs and Shocks
  • Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
  • Race-tuned progressive rate white powder-coated springs
• Wheels and Tires
  • Pre-glued scale all-terrain tires with performance foam inserts
  • 2″ outer diameter, 3″ inner diameter dual-profile SCT wheels
• Rubber-Sealed Ball Bearings
• Precision Hex Hardware
• Backed by Unparalleled Traxxas Support and Parts Availability

Model Specs

Height:	8.43 inches (214 mm)
Wheelbase:	13.2 inches (335 mm)
Drivetrain:	2WD
Transmission:	Heavy-Duty Magnum 272™
Differential Type:	Planetary steel gear
Gear Ratio (Internal):	2.72 (final drive: 9.05)
Gear Pitch:	48 pitch
Servo(s):	2075 digital high-torque waterproof
Radio System:	TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs:	165 mm X 50 mm X 23 mm, 25 mm



Motor Specs

Motor Name:	Titan® 12T 550
Motor Type:	High-speed brushed motor
Motor Weight:	8.47 ounces (240 g)
Motor Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:	1.41 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Bullet   ESC Specs ESC Name: Waterproof XL-5 ESC with low-voltage detection ESC Type: Brushed ESC Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) ESC Weight: 2.44 ounces (69 g) Motor Connectors: Bullet Battery Connectors: Traxxas High-Current Connector ESC Power Wire: 14 gauge
