FEATURES:

• Pre-Installed Heavy-Duty Aluminum Upgrades
  • Blue-anodized 6061-T6 aluminum C-hubs
  • Blue-anodized 6061-T6 aluminum steering blocks
  • Blue-anodized 6061-T6 aluminum rear hub carriers
  • Blue-anodized 6061-T6 aluminum axle nuts
• Race Replica ProGraphix® Painted Body
  • Pre-painted body with applied decals
  • Scale dimensions and looks of actual short course race trucks
  • Chassis nerf bars absorb impact and support the body
  • Scale front and rear tube-style bumpers
• VXL-3s™ Waterproof Electronic Speed Control
  • Three programmable drive profiles:
    • Sport Mode - Forward / Brake / Reverse
    • Race Mode - Forward / Brake
    • Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
  • Traxxas EZ-Set® one-button setup
  • Large heat sink
  • Built-in two-stage low-voltage detection for LiPo batteries
  • NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
  • LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
• Velineon® Brushless Motor
  • Ultra high-temperature sintered Neodymium magnets
  • Optimized for power and efficiency in 1/10th scale vehicles
  • Low-maintenance, unique Traxxas design
  • Efficient, high-speed ball bearings
  • Precision-balanced rotor
  • 3500 kV
  • Brilliant blue-anodized finish
• Traxxas Stability Management® (TSM)
  • Improves straight line acceleration and braking on low-traction surfaces
  • Maintains steering composure to allow throttle-on powerslides
  • Never dulls throttle or slows the truck
  • Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4 GHz High Output Radio System
  • TQi 2-channel transmitter
  • 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
  • Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
  • Programmable multi-function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • Patented waterproof receiver box with easy-access plug
• Low-CG Reinforced Monocoque Chassis
  • Batteries and electronics held low for improved handling
  • Low-CG design dramatically increases corner speed
  • Modular chassis makes maintenance quick and easy
  • Long 12.75” wheelbase for increased stability
  • Easy motor access with single-screw motor plate attachment
  • All electronics securely fastened to chassis
  • Integrated personal transponder mount
• Easy Access Battery Compartment
  • Adjustable battery hold down
  • Accepts 6- and 7-cell NiMH flat packs
  • Accepts many 2s and 3s LiPo battery configurations
• Transmission and Driveline
  • Full-time shaft-driven 4WD
  • Blue-anodized aluminum center driveshaft
  • Torque-Control™ slipper clutch with large 32-pitch gearing
  • Sealed, silicone-filled differentials with steel gears
  • Upgraded Extreme-duty telescoping driveshafts
• Steering
  • Digital high-speed 2075R waterproof metal gear steering servo
  • Dual bellcrank steering system with integrated servo saver
• Suspension
  • Impact resistant heavy-duty suspension arms
  • Adjustable front and rear sway bars
  • Adjustable steel turnbuckles
  • Captured rod ends won't pop off
• Springs and Shocks
  • High-volume GTR shocks with adjustable-collar blue PTFE-coated aluminum bodies and titanium-nitride coated shafts
  • Race-tuned white powder-coated springs
• Wheels and Tires
  • Officially-licensed BFGoodrich® Mud-Terrain™ T/A® Tires molded in S1 race compound
  • 2” outer diameter, 3” inner diameter dual-profile SCT wheels
• Rubber-Sealed Ball Bearings
• Precision Hex Hardware
• Backed by Unparalleled Traxxas Support and Parts Availability
• Requires Battery, and Charger (Sold Separately)

 Model Specs

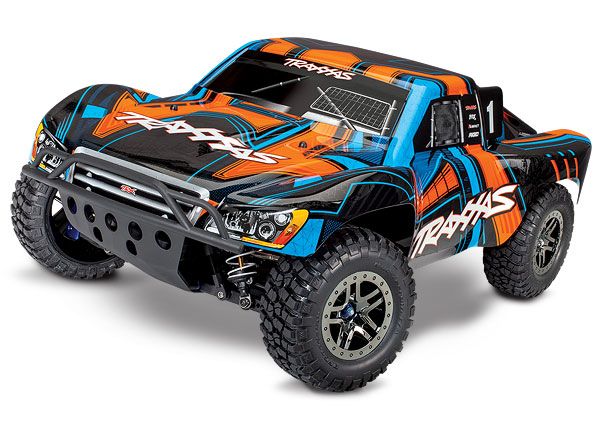

Model Name:Slash 4X4 UltimateModel

Type:Short Course Trucks

Model Speed:60+ mph with optional gearing and 3s LiPo battery (items sold separately)

Model Skill Level:2

Scale:1/10

Weight:5.03 pounds (2.28 kg)

Length:22.36 inches (568 mm)

Width:11.65 inches (296 mm)

Front Track:11.65 inches (296 mm)

Rear Track:11.65 inches (296 mm)

Height:7.60 inches (193 mm)

Wheelbase:12.75 inches (324 mm)

Center Ground Clearance:1.85 inches (47 mm)

Drivetrain:Shaft-driven 4WD

Differential Type:Hardened steel bevel, sealed, limited slip

Gear Ratio (Internal):11.82:1

Gear Pitch:32 pitch

Servo(s):2075R metal gear, digital high-torque, waterproof

Radio System:TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver and 6511 Wireless ModuleBattery Expansion Kit:

Battery expansion kit available (7426X)Battery Compartment Specs:165 mm X 49.5 mm X 23 mm , 25 mm

Motor Specs

Motor Name:Velineon® 3500Motor

Type:Sensorless brushless

Motor Weight:9.24 ounces (262 g)

Motor Length:3.03 inches (77 mm)

Overall length, 2.2 inches (56 mm) can length

Motor Diameter:1.41 inches (36 mm)

Motor Shaft Size:3 mm

Motor Connector Type:3.5 mm bullet

ESC Specs

ESC Name:VXL-3s™ electronic speed control

ESC Type:Brushless

ESC Case Size:1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)ESC

Weight:3.17 ounces (90 g)

Motor Connectors:3.5 mm bullet

Battery Connectors:Traxxas High-Current Connector

ESC Power Wire:12 gauge Maxx® Cable
